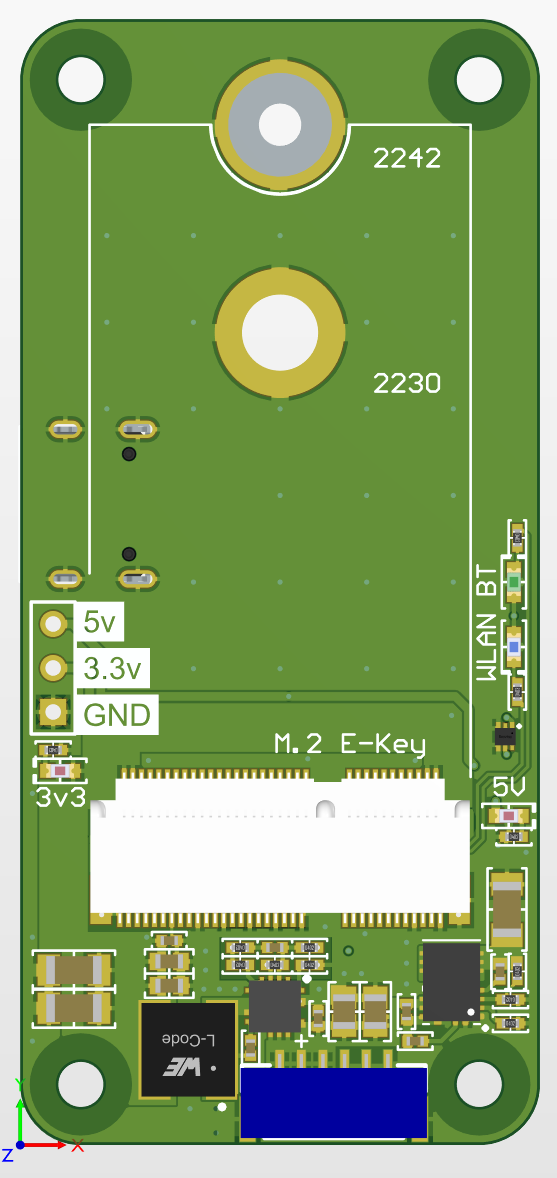

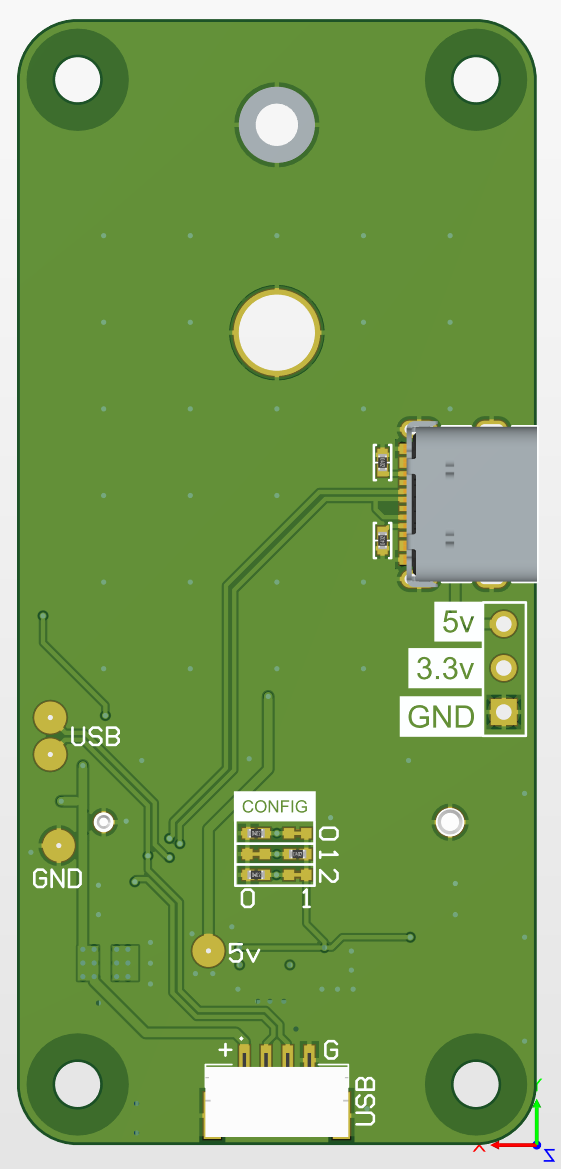

RPI-Zero M.2 E-Key Backpack

The RPI-Zero M.2 E-Key Backpack allows an M.2 Wifi card to be used with a Raspberry Pi Zero. The module provides power and USB connectivity to the M.2 card. The module is designed for high-power M.2 cards, such as Wifi/Bluetooth adapters.

Buy it here!

Physical Specifications

Dimensions	65mm × 30mm
Weight	7.65g
Form factor	RPi-Zero 2
Assembly	Mount with standoffs and pogo pins to the back of an RPi-Zero 2 or any other suitable mounting method

Key Components

Specification	Value
M.2 Mount	E-Key 2230, 2242
M.2 Protocol	USB 2.0 only
Input Voltage	2-6S
3.3V Regulator	3.3V, 8A
5.0V Regulator	5.0V, 3A

NDAA Compliance

The RPI-Zero M.2 E-Key Backpack is designed for U.S. manufacture. Component selection targets NDAA Section 848 compliance — consult the bill of materials for full sourcing detail.
